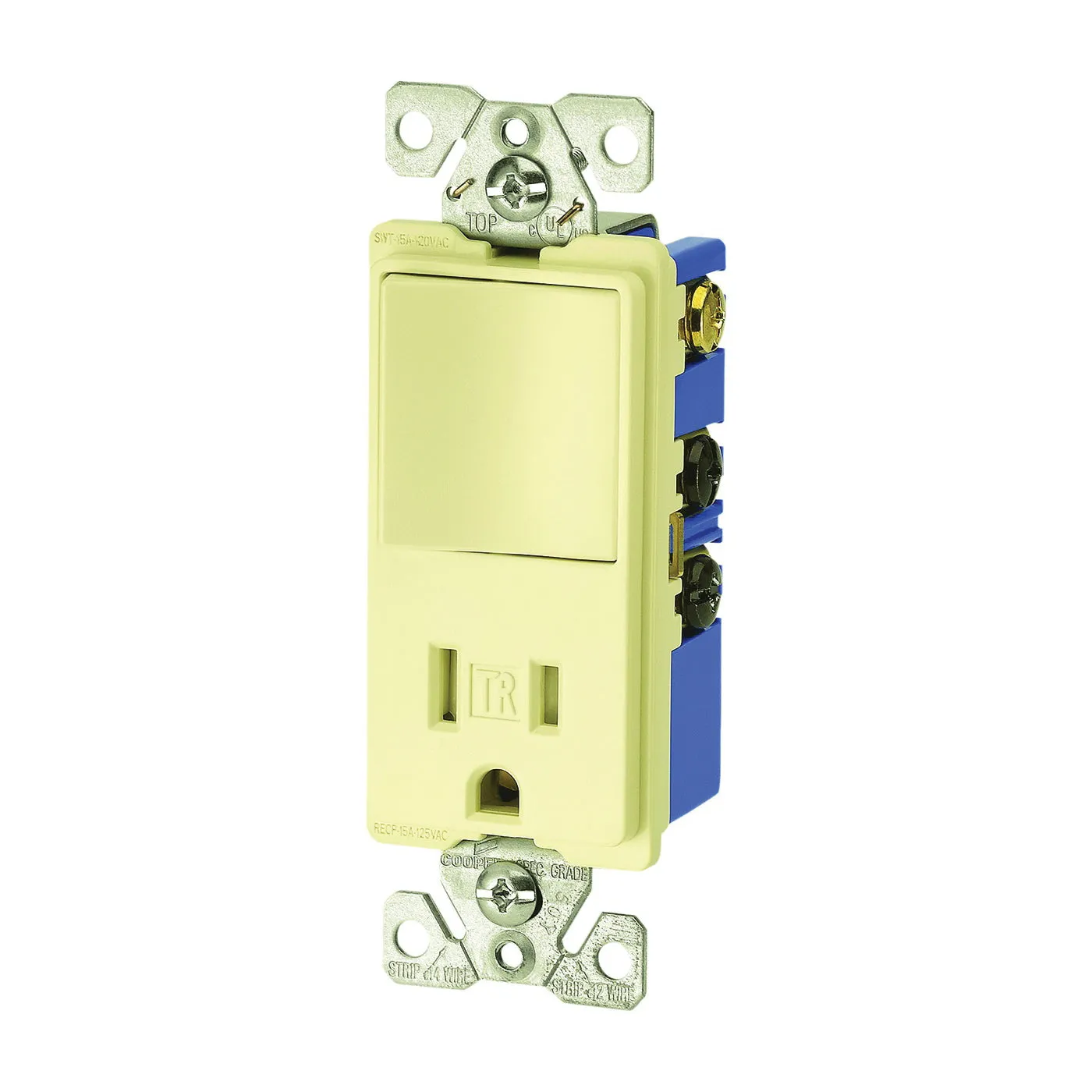

Decorator heavy-duty-grade combination device features 15 A 120 V switch and tamper-resistant 15 A receptacle. Features UL listed tamper-resistant shutters designed to prevent the insertion of foreign objects. TR7730 switch is horsepower-rated for motor loads per UL 20. Thermoplastic rocker, top and backbody are virtually unbreakable to deliver years of durable performance. Ultrasonic welding and integrated construction of the strap and body provide excellent ground integrity even under heavy use. Durable, injection molded housings and PVC resin comply with UL94 V0 flammability ratings. Tri-combo screw heads offer greater installation flexibility.
Product Details
Manufacturer:
Manufacturer's Part Number: TR7730V
Show me more
Product Features
- Convenient patented built-in wire stripper speeds installation
- Steel mounting strap is zinc-plated for added corrosion resistance
- Terminal screws are backed out and ready for wiring to enhance ease of installation
- Break-off provision for wiring both devices on the same circuit or on separate circuits
- Back wire clamps on side terminals provide for easy installation of #12 and #14 AWG wire
- Triple-wipe blade contacts and double-wipe ground contacts to insure long-term plug retention
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure and provides redundant measure of ground continuity where jumper is used
Product Specifications
| Color | Ivory |
| Current Rating | 15 A |
| Dielectric Strength | 1500 V |
| Dimensions | 1.08 in D x 4.19 in H |
| Material | Thermoplastic |
| Mounting Type | Flush |
| Number of Poles | 1 |
| Operating Temperature | -20 to 60 deg C |
| Terminal Type | Screw |
| Type | Heavy-Duty |
| Voltage Rating | 120/277 V |
| Wire Size | 14 to 12 AWG |
| Wiring Type | Back and Side |
Product Documents
| Specification Sheet | |
| Instruction/Installation Manual |
