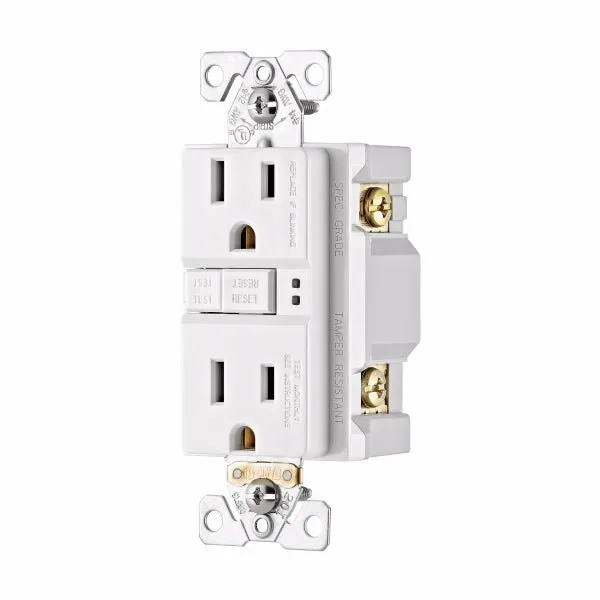

Cooper Wiring TRSGF20W 20-Amp GFI
Eaton ground fault circuit interrupter receptacle, 20A, 125V, Back wire and side wire, GFCI, White, Brass, Receptacle, Tamper resistant, PVC, 5-15R, Two-pole, three-wire, grounding
- Matching thermoplastic wallplate included
- Performs periodic self-tests to ensure integrity of GFCI protection
- Visual trip indicator light gives quick notification of a tripped or “end of life” condition
- Meets and exceeds 10 kA short circuit testing and Underwriters Laboratories (UL) UL943 safety standards
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
- More info by Additional Info↓
| Length (in.)
|
4.19" |
| Width (in.)
|
1.30" |
| Depth (in.) |
1.64" |
| Weight (lbs) Each |
0.41 lbs |
Spec Sheet
Info
| Type |
GCFI Receptacle |
Connector Type
|
|
| Certifications |
cULus Listed
|
| Color |
White |
| Material |
Thermoplastic, PVC |
Additional Info
| Wiring Method |
Back and Side Wire |
| Mounting |
Flush |
| Wire Size |
#14-10 AWG |
| Number of Poles |
Two-pole, three-wire, grounding |
| Voltage |
125V |
| Amp. Rating |
20 A |
| Use |
Residential / Commercial |
| Torque Rating |
16 lbf-inch |
| Compliances |
- cULus Listed to UL498, file no. E15058
- UL certified to CSA C22.2, no. 42
- NOM/ANSI certified.
|
- Ground termination with back wire clamp provides secure wiring and reduces installation time
- Tamper resistant shutters help prevent foreign objects from being inserted
- Line side terminals are backed out and staked for fast installation
- Horizontal test/reset button alignment provides larger unobstructed area
- Test and reset buttons are color matched to provide superior aesthetics
- Tapered back wire openings handle multiple wire sizes and types for applications up to #10 AWG solid or stranded wire
- When downstream receptacles are wired from load side, a 20A feed-through rating offers full protection
- Black tamper resistant shutters create seamless look
- Line-load miswiring protection: GFCIs will not provide power downstream when wired incorrectly
- Tri-combo head terminal and mounting screws
- UL Listed, fully compliant with all latest UL943 Class A GFCI requirements
- Tamper resistant models comply with 2017 and 2020 NEC Article 406.12
- Weather resistant models comply with 2017 and 2020 NEC Article 406.9 that states that all receptacles installed in wet or damp locations must be weather resistant
- Longer, wider “bridged” strap provides 40% more contact area with wallboard, virtually eliminating floating installations
- Matching thermoplastic wallplate included
