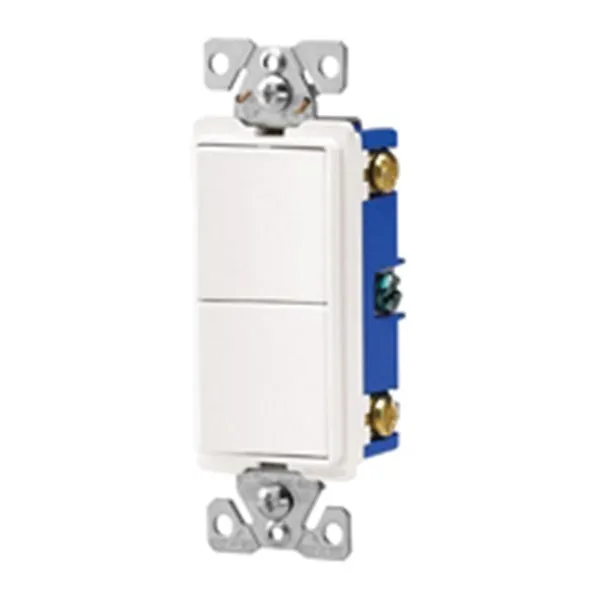

High-impact-resistant thermoplastic rocker, top and back body. Injection molded housings and PVC resin, comply with UL94 V0 flammability ratings. Tri-combo screw heads, built-in wire stripper. Backwire clamps on side terminals for installation of #12 and #14 wire. Terminal screws are backed out for easier and faster wiring. Thick (0.045 in/1.14 mm) steel mounting strap is zinc-plated. Automatic grounding system eliminates the need for bonding jumper in grounded metal enclosure and provides redundant measure of ground continuity where a jumper is used. 120/277 VAC, 15 A rocker switches with break-off provision for wiring both devices on the same circuit or on separate circuits. UL, cUL listed and NOM 426 rated.

Product Details

Manufacturer:

Manufacturer's Part Number: 7728W-BOX

Show me more

Product Features

• Decorator design features easy, smooth actuation of the rocker

• Steel mounting strap is zinc-plated for added corrosion resistance

• Terminal screws are backed out and ready for wiring to enhance ease of installation

• Break-off provision for wiring both devices on same circuit or on separate circuits

• Backwire clamps on side terminals provide for easy installation of #12 and #14 AWG wire

• Durable, injection molded housings and PVC resin comply with UL94 V0 flammability ratings

• Thermoplastic rocker, top and back body are virtually unbreakable to deliver years of durable performance

• Ultrasonic welding and integrated construction of the strap and body provide great ground integrity even under heavy use

• Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure and provides redundant measure of ground continuity where jumper is used

Product Specifications

Product Documents
