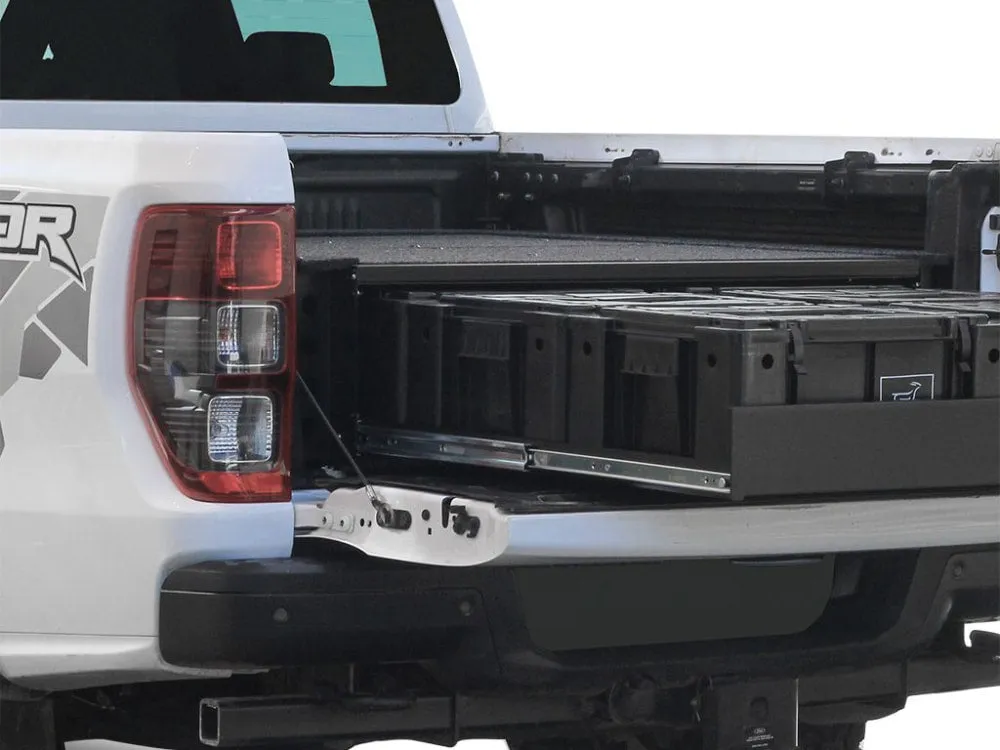

Ford Ranger Wildtrak / Raptor (2014 - Current) with Drop In Bed Liner Wolf Pack Drawer Kit by Front Runner

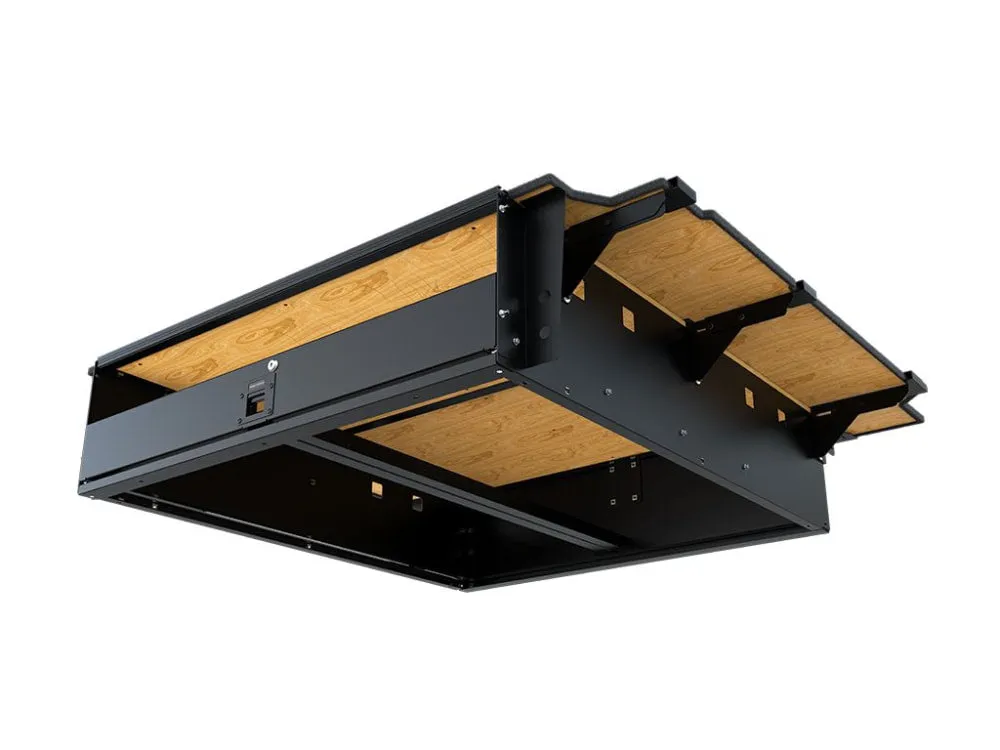

Storing, organising and moving gear in a Ford Ranger Wildtrak / Raptor equipped with a drop-in bed liner just got easier. This lockable drawer system provides a comprehensive and practical vehicle-based storage solution.

The drawer system uses our popular to simplify organising and transporting stored items. The kit is engineered tough for both on and off-road conditions.

• Drawer kit includes: one (1) drawer slide, six (6) Front Runner Wolf Packs, set of locks and keys, three (3) tie down rails, six (6) tie down rings, deck completion set, face completion set, brackets, all necessary installation hardware, and detailed installation instructions.
• Load-carrying capacity: 113kg per drawer
• Clip-closure, stackable and durable are made from black, high-strength plastic, and have integrated grips for easy carrying.

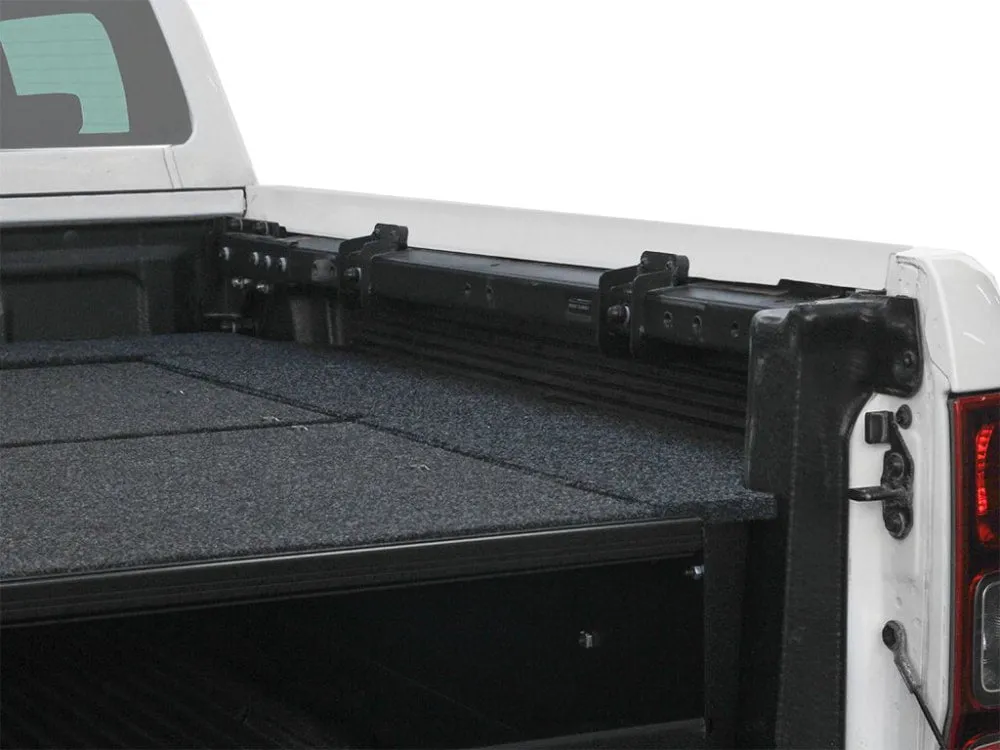

• Easily install or remove the drawer in minutes by attaching the supplied C-hooks and turnbuckles to the vehicle’s existing mounting points and the drawer mounting brackets.

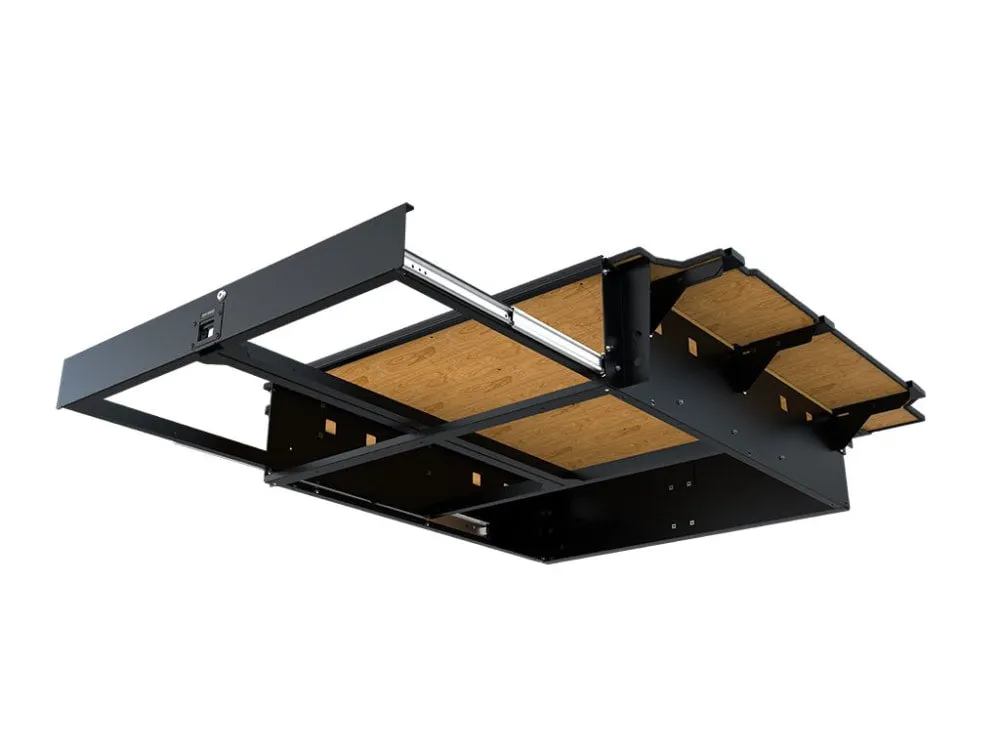

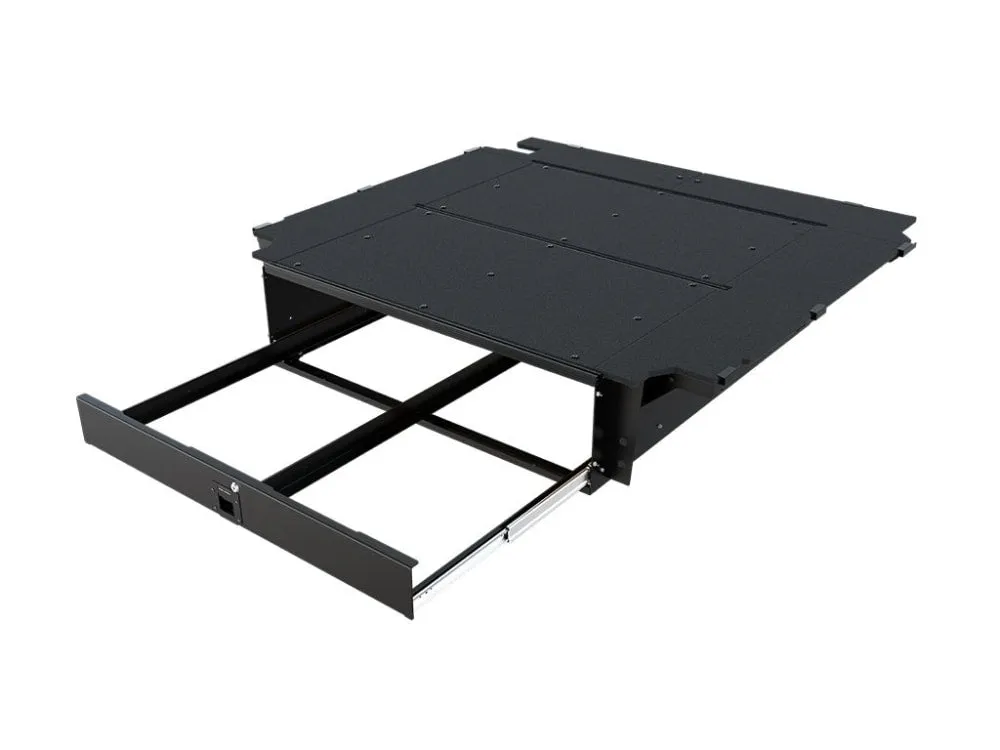

• High-strength bearing slides allow the drawer to extend nearly 100% from the anchored base.
• Stack and store luggage on or inside the drawers in your own custom configuration with solutions and boxes (sold separately).
• The deck above the drawers can also be used to mount .
• Drawer “locks” open while parked on uneven surfaces.

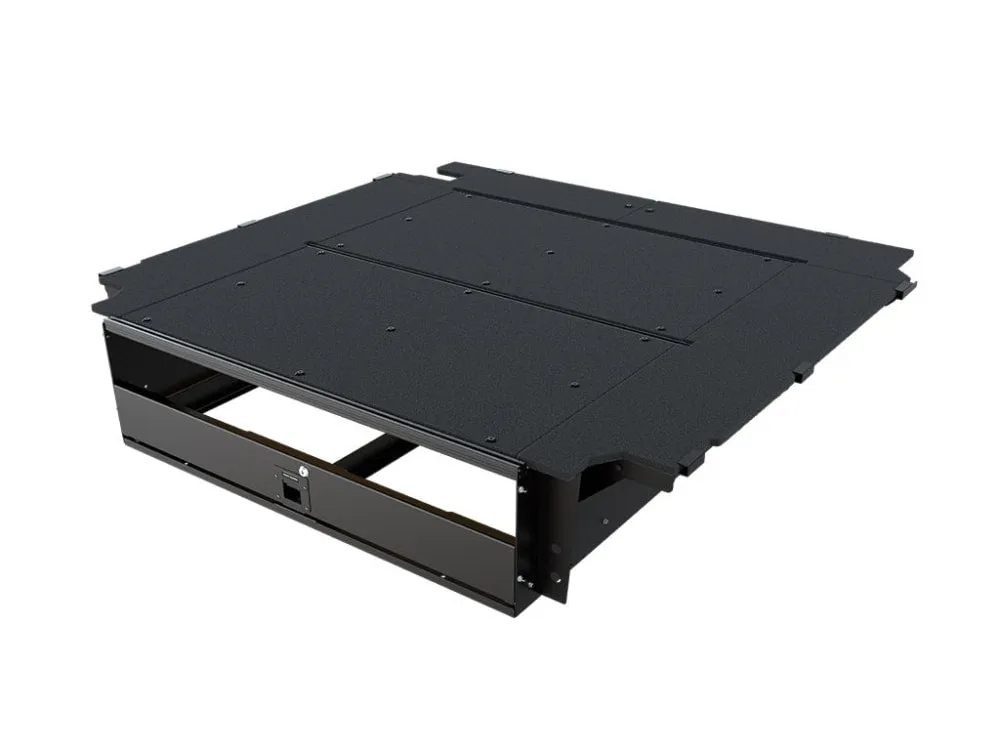

• The deck is covered with a durable, UV-resistant nylon pile black carpet to create resiliency for securing cargo while insulating against noise and vibration.

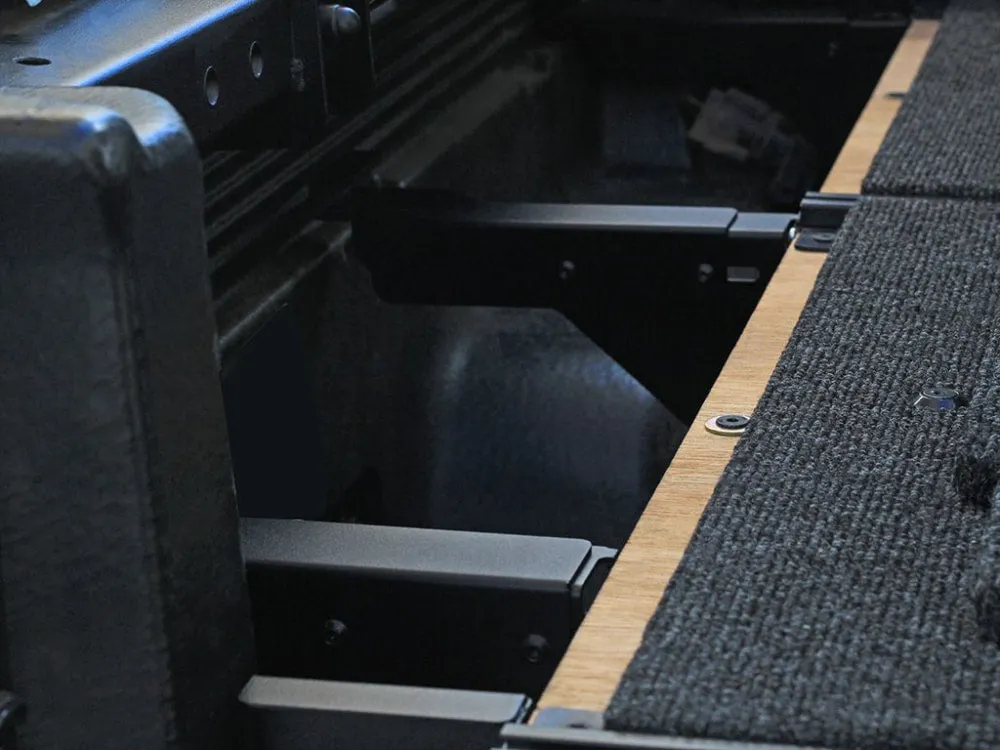

• Side decks are easily removable to create storage space between the drawers and vehicle for a variety of items such as jumper cables, tow ropes, kindling and more.

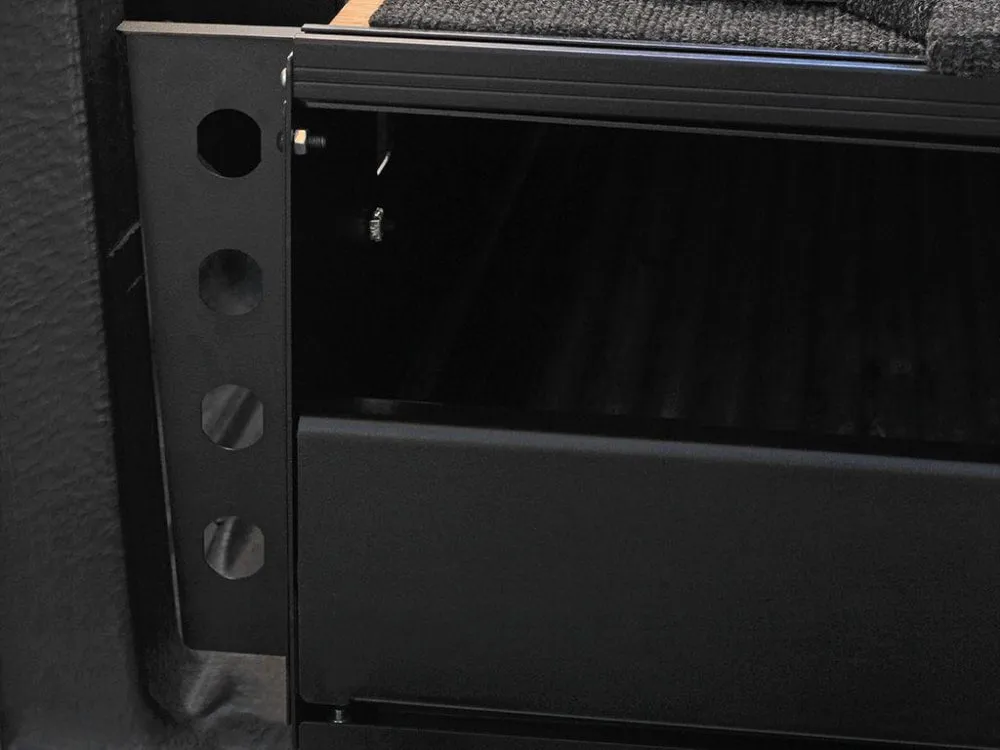

• Each faceplate has pre-cut knockouts for additions like electrical panel socket inserts or water fittings (sold separately).
• Finished with the same durable black powder coating as and other Front Runner products.
• Designed for interior use with a canopy, camper shell, or other style bed/load bed cover.

Specifications

Consists of:

• 1 x Base Drawer unit (SSWO008)
• 1 x Ford Raptor w/Drop-In Liner Deck set
• 1 x Drawer system Wing set
• 1 x Push to close latch with 2 keys
• 3 x Accessory channels
• 6 x Eye Nuts for accessory channels
• Installation Hardware
• Fitting Instruction

Materials used:

• Aluminum - Accessory Channels and Sub Frame
• Black powder coated steel - Frame
• Carpet & Laminated plywood - Top Deck and Deck Set

Product Dimensions:

• 1456mm L x 1548mm W x 312mm H

Inner Drawer Dimensions:

• 1197mm L x 1031mm W x 230mm H

Open Drawer Dimensions:

• 2163mm L x 1083mm W x 310mm H

Weight:

• 80.7kg

Load Rating:

• 113Kg per Drawer
