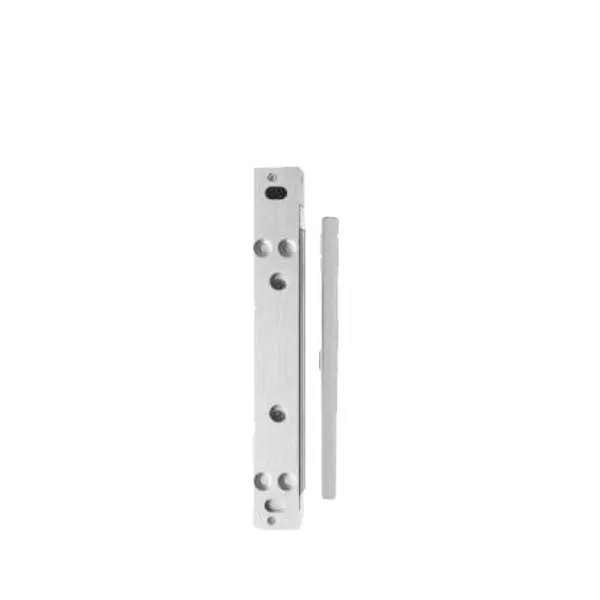

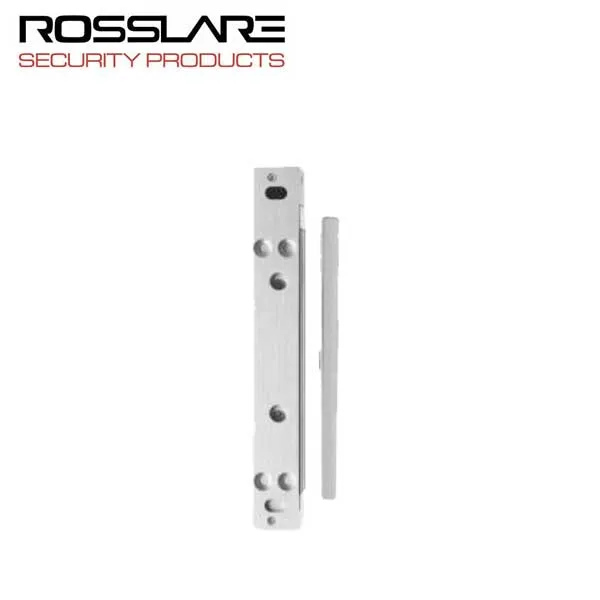

The LK-M03L is a surface mounted magnetic lock with anodized aluminum housing with 300 lbs of holding force, respectively. LK-M03L operates on dual voltage (12 VDC or 24 VDC) and low current consumption. In addition, it has built-in voltage spike suppressor and no residual magnetism.
Features:
- Dual voltage (12 VDC or 24 VDC) by changing a jumper setting
- Built-in voltage spike suppressor
- Compatible with EN55011:1998 class B,EN60601-1-2:2002,EN61000-4-:1995, EN61000-4-3:2002 & UL-S5351
- Surface Mounted Magnetic Lock
- 300 lbs holding force and is built from corrosion resistant anodized aluminum
| Dimensions | 166 x 38.6 x 21.5 mm (6.54 x 1.52 x 0.85 in.) |
| Device Type | Magnetic Lock |
| Voltage |
Dual voltage: 12/24 VDC |
| Current |
12 VDC: 360 mA / 24 VDC: 180 mA |
| Holding Force | 136 kg (300 lb) |
| Operating Environment | Suitable for indoor use |
| Manufacture Warranty | 1-Year Limited Warranty |
