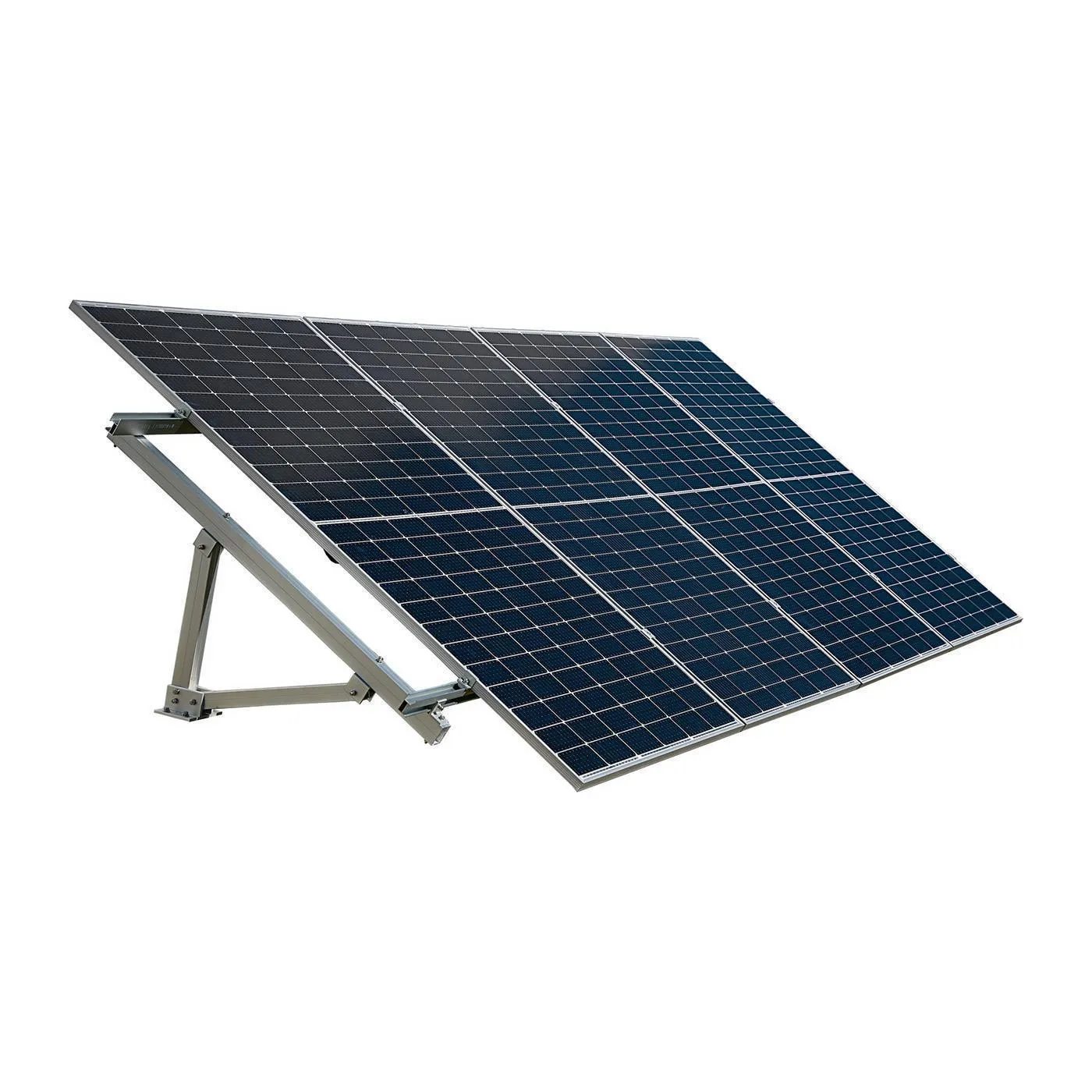

Signature Solar EG4 BrightMount Solar Panel Ground Mount Rack Kit | 4 Panel Ground Mount | Adjustable Angle

New Feature: Adjustable Angle! (25-35 Degree Adjustment)

Built to last using high-quality aluminum and stainless steel alloys, the EG4 solar panel ground mount will stand firm even in winds up to 105 mph. EG4’s attention to quality and customer has produced a cost-effective, low-profile solution meaning that you can set these up anywhere and count on them to last. We back our rack with a 10-year mechanical warranty so that you know your array is secure for years to come. However, our hardware isn’t just durable, it’s also simple!

With just a few tools, you can assemble the entire rack alone, no assistance is needed. This makes it a perfect choice for homeowners and installers alike by cutting labor costs and streamlining the installation process.

Cost-Effective Yet Outstanding Durability

• Aluminum/Steel Alloy

  • Lightweight, strong, and weather resistant.

• Rated to Withstand Winds Up to 105mph.

• Low Profile Design

• Simple Design - Install Almost Anywhere!

• Quality Assurance

  • Backed By a 10-Year Warranty


BrightMount Versatility

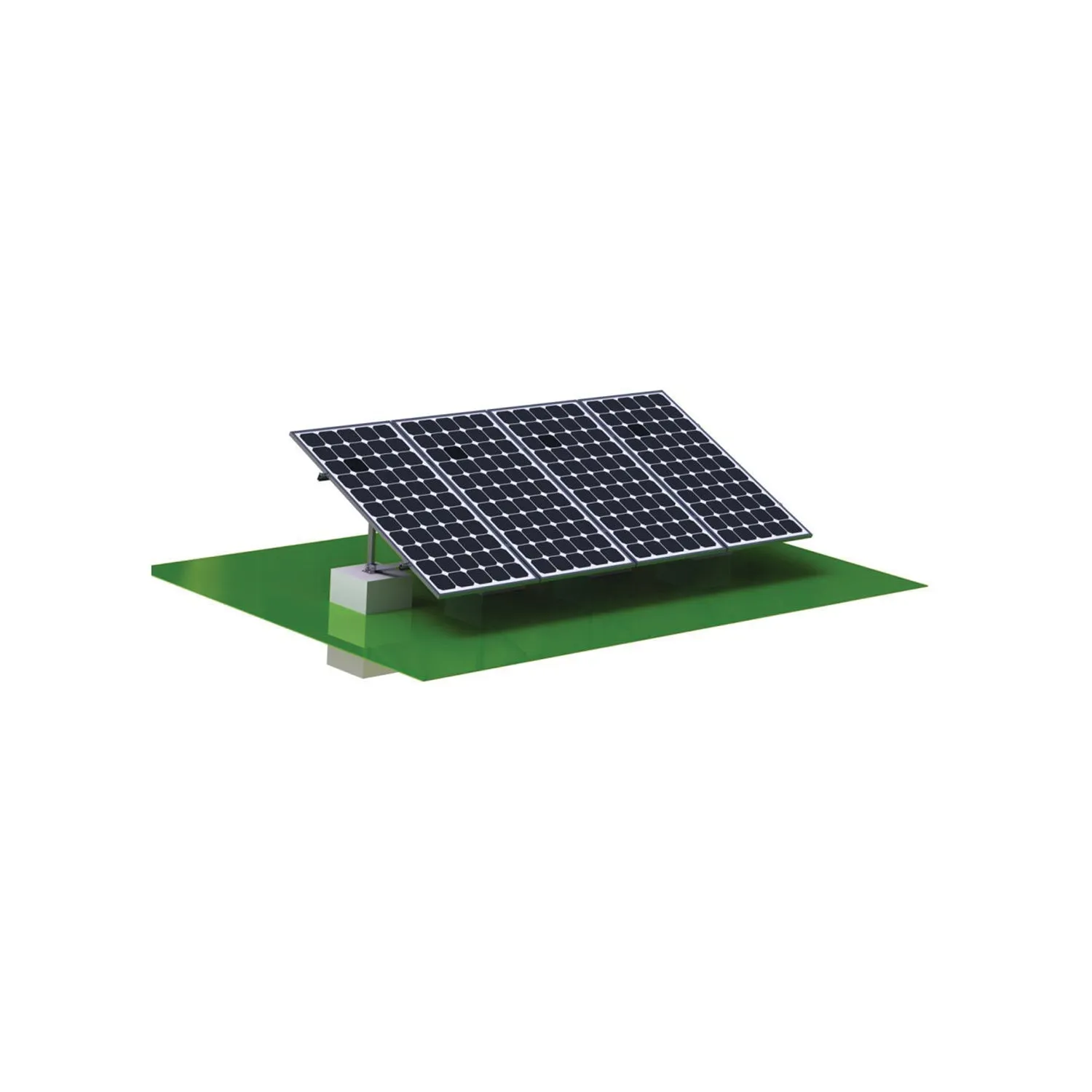

• Multiple Terrains

  • Concrete, wood, soil with appropriate substructure

• Flat Top Roof(tied to struts)

• Adjustable Angle: 25° - 35° for all around maximum solar absorption.

• Supports up to 4 solar panels (44 inches wide or less)


Easy Installation

• Minimal tools needed

  • Optional concrete if needed with a masonry drill bit

  • Gloves, drill or wrench, tape measure & level

• Can be Assembled in ~30 minutes


Recommended Tools/Safety Equipment

• Work gloves, cordless drill/driver, monkey wrench, 12.5mm drill bit, Allen wrench, measuring device, level.

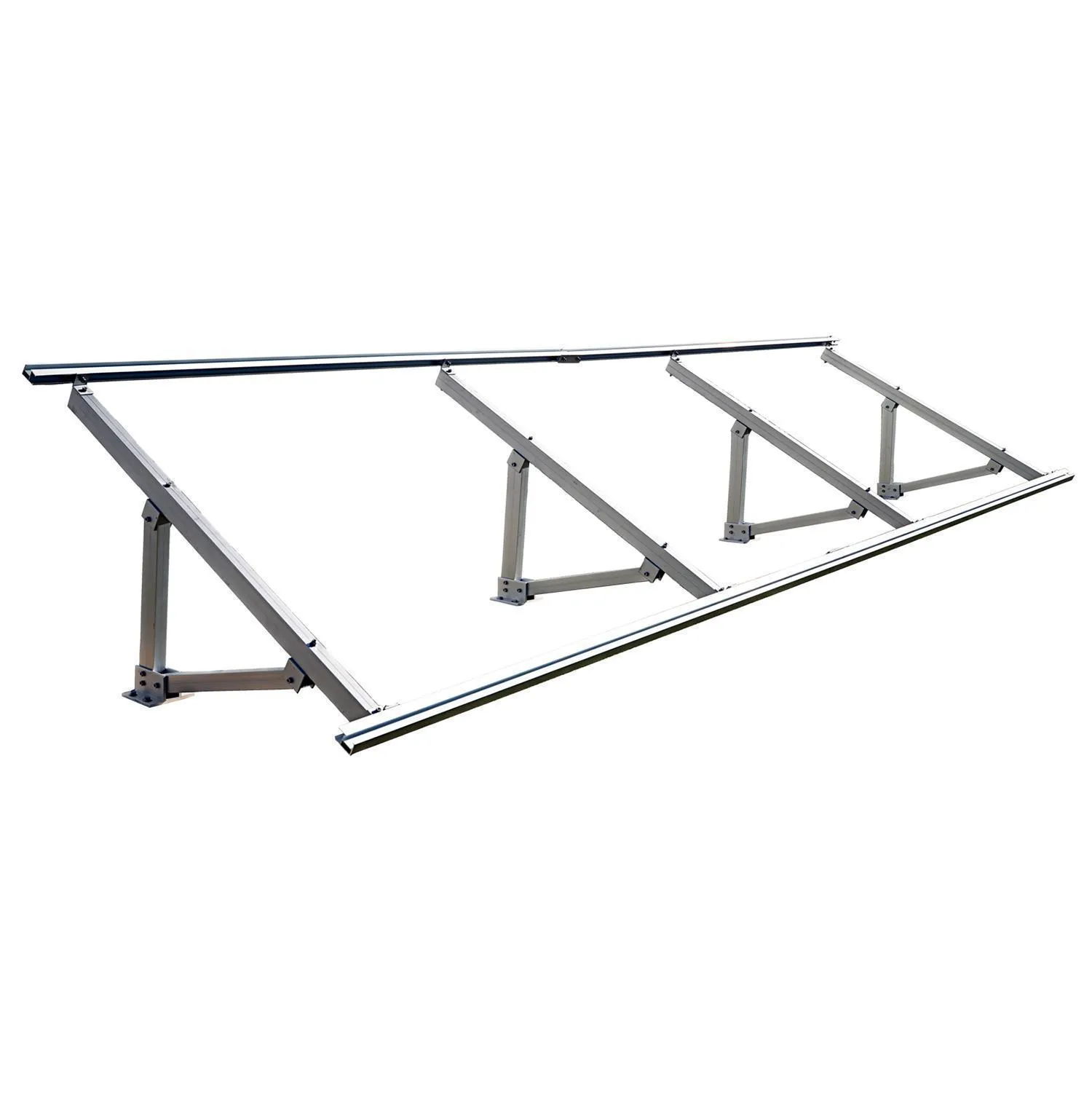

Rails: 4x | 1591011-SP24 | EG4 BrightMount Rail | 2280mm | 89.76 In

Mounts: 4x EG4 25 Degree Mounts

Gusset: 6x EG4 L-Connector for Rails

Rail Connector: 2x EG4 Rail Connector With Bonding Jumper

End-Clamps:

• 4x EG4 End Clamp 30mm
• 4x EG4 End Clamp 35mm
• 4x EG4 End Clamp 40mm

Mid-Clamps: Fits 30mm to 40mm

Lugs: 2x EG4 Earth Lug Extruded 6005

Grounding Clips & Wire Management:

• 6x EG4 Grounding Clip SS304
• 4x PV Cable Lip(Wire Management) - 2 Wire

Expansion Screw: 16x EG4 Expansion Screw 10*100
